Goodyear Welted Footwear Production Line Solution

Engineering the Gold Standard of Footwear: We provide a comprehensive, automated solution for authentic Goodyear Welted construction—the pinnacle of durability and craftsmanship.

  • 25 Years of Engineering Excellence
  • Specialized Welted Technology
  • Global Technical Support
Request Technical Layout

Quality stems from meticulous manufacturing

Unlike trading agents, Tenghong operates a full-process factory. From the heavy-duty casting of the welt sewing head to the precision PLC logic, we control every micron. This ensures the high-tension stability required for multi-layer Goodyear stitching.

Goodyear Welted Production Flow Overview

PHASE 01:

Upper Processing & Moulding

Core Process: Shaping the leather for a perfect, wrinkle-free fit.

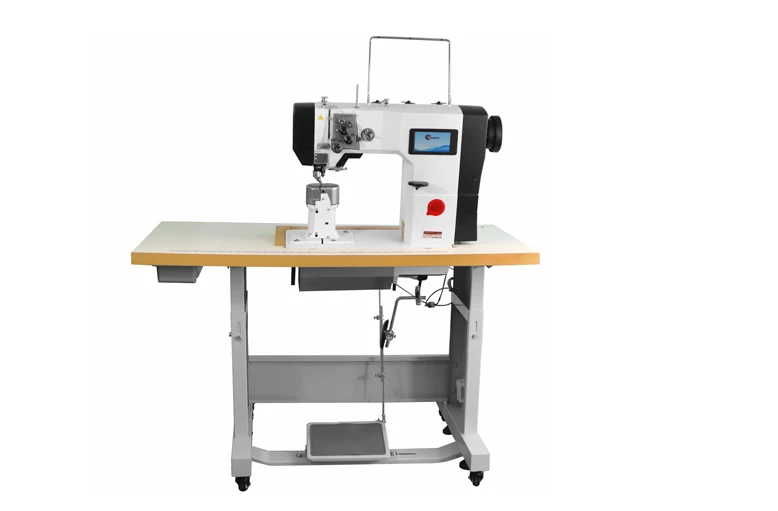

Computer Controlled Roller Sewing Machine

Detailed Function: Features a synchronized top and bottom roller feed system to ensure zero-slip stitching on delicate or oily leathers. The high-torque needle penetration is designed for multi-layer leather assembly, ensuring consistent stitch length even on steep curves of the brogue patterns.

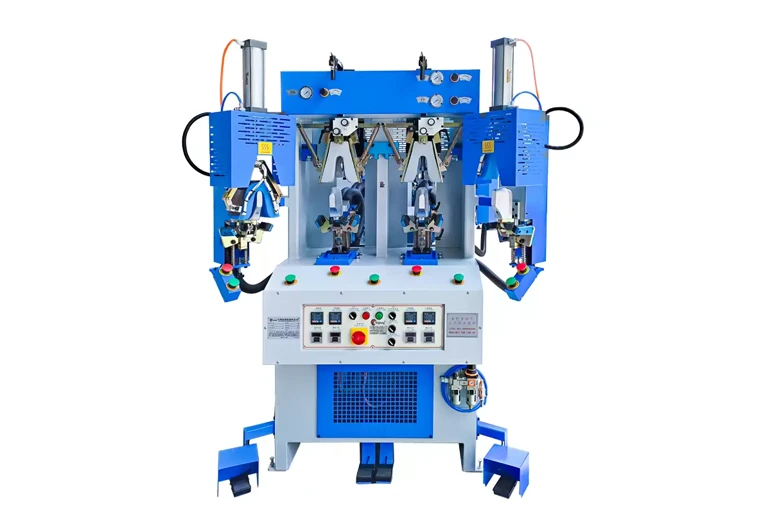

Double Cold & Hot Counter Moulding Machine

Detailed Function: Utilizes a rapid-heating aluminum mould to soften the leather/counter, followed by an immediate -15°C cryogenic flash-freezing stage. This "thermal shock" creates a permanent shape memory, ensuring the heel perfectly grips the last's geometry without spring-back.

PHASE 02:

Lasting & Shaping

Core Process: Stretching the leather over the last with mechanical precision.

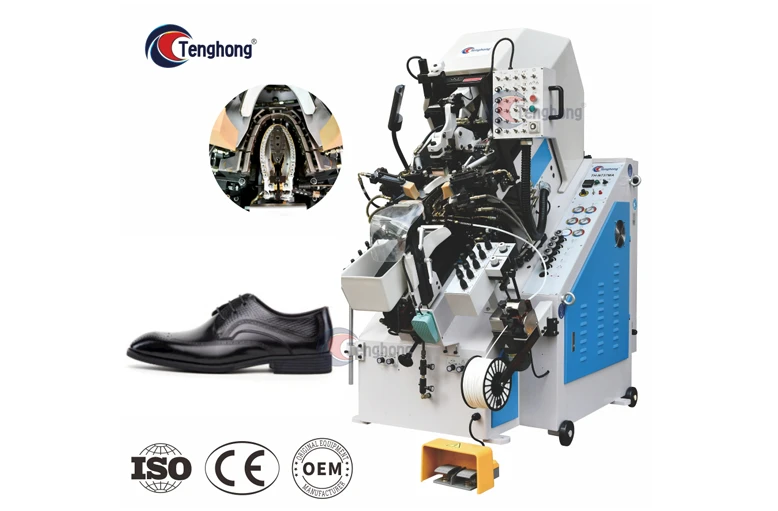

9-Pincer Computer Memory Toe Lasting Machine

Detailed Function: Each of the 9 pincers features independent tension adjustment controlled by a PLC memory system. It executes a high-tension "pull and wipe" action that stretches the upper tightly over the insole rib. The automatic CNC cementing system applies a uniform hot-melt bead precisely where the upper meets the rib.

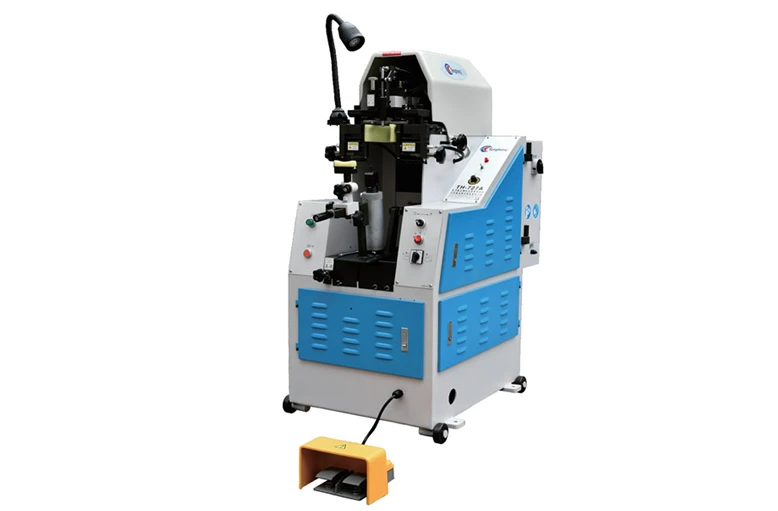

Automatic Heel Lasting Machine

Detailed Function: Designed to handle the rigid structure of Goodyear shoes, this machine uses heavy-duty wipers to wrap the heel seat with high pressure.

PHASE 03:

The Core — Welt Sewing

Core Process: The defining horizontal stitch that allows for easy resoling.

Goodyear Welt Sewing Machine (Ref: Cupid Sole Stitching)

Detailed Function: The most critical unit in the line. It uses a curved needle and awl system to perform a horizontal lockstitch, binding the welt, the leather upper, and the insole rib simultaneously. The integrated wax-pot lubricates the heavy thread to prevent friction heat, ensuring a waterproof and indestructible structural bond.。

PHASE 04:

Sole Attaching

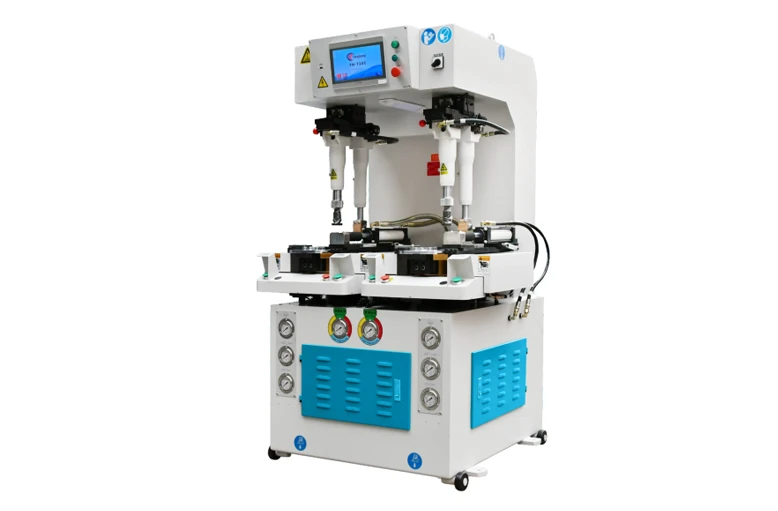

Computer Control Hydraulic Sole Attaching Machine

Detailed Function: Employs a multi-zone hydraulic “wall” pressing system that applies balanced force (up to 30kg/cm²) across the entire sole surface. It features automatic incline tracking to adapt to different heel heights, ensuring zero air bubbles between the cork-filled cavity and the outsole.

PHASE 05:

Edge Trimming & Luxury Finishing

Core Process: Sculpting the aesthetic profile and mirror-like luster.

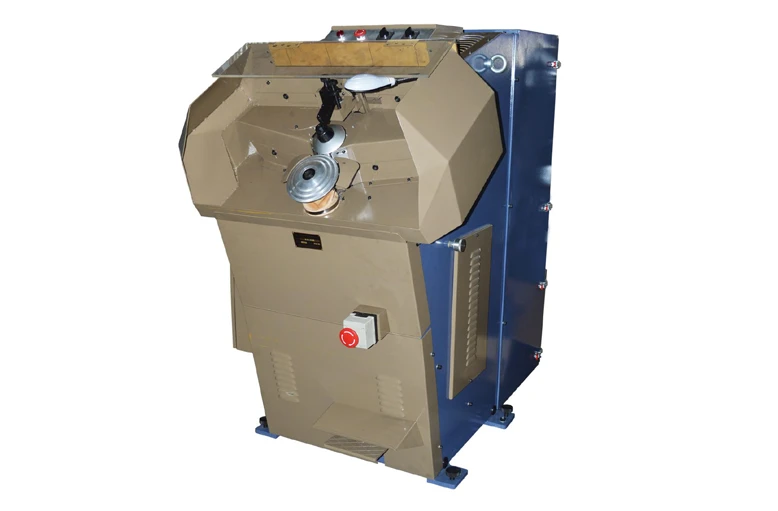

Edge Trimming Machine

Detailed Function: Equipped with high-speed carbide cutters (up to 12,000 RPM) to trim the excess welt and outsole edge into a precise, classic profile. The dual-axis guide ensures symmetry between the left and right shoe, creating the sharp, professional edge required for premium footwear.

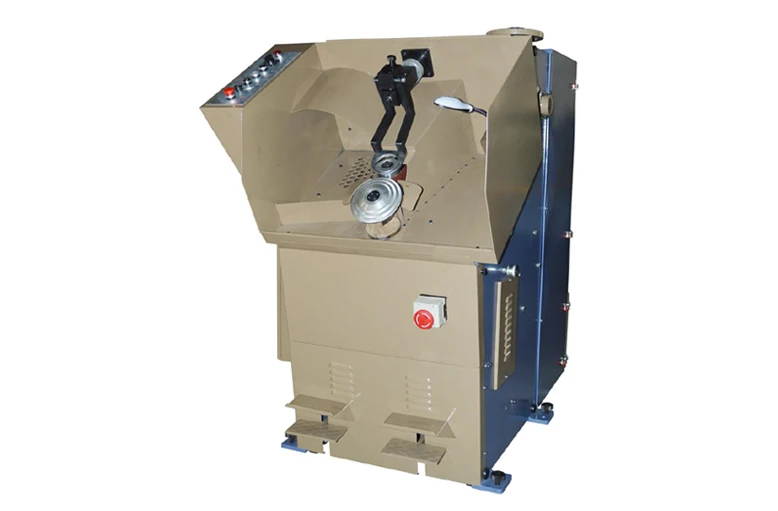

Belt Polishing Machine

Detailed Function: A multi-stage finishing system using varying grits of abrasive belts and Carnauba wax brushes. It grinds away micro-imperfections on the leather edge before applying high-speed friction to melt wax into the pores, creating a deep, mirror-like "burnished" luster that is the hallmark of luxury.

Global Impact & Performance

0 +

Years of Welted Shoe Innovation

0 +

Goodyear-Specific Factory Deployments

0 %

Efficiency Boost in Welting Speed

0 %

Resole-Ready Quality Guarantee

Tailor-made, one-stop solutions for entire factory operations.

Master the Welt, Master the Market

Goodyear construction is complex.We provide more than machines; we provide the mathematical layout for efficient flow, from ribbing to outsole stitching. Our CNC logic ensures even complex curves are handled with ease.

Welt-Line Layout Planning

CNC Stitching Logic Customization

Master-Level On-Site Training

24/7 Global Technical Hotline

Global Service Ecosystem: We Export Craft Logic

From Northampton to Istanbul, Tenghong machinery is the backbone of high-end welted footwear. We don’t just sell machines; we partner in your legacy.

Global Commissioning

Engineers dispatched globally to calibrate the high-tension stitchers and PLC logic for 100% precision.

Craft-Level Training

Technical deep-dives for your team on maintaining the needle-and-awl system and thread tensioning logic.

Rapid Spares

Instant access to specialized needles, awls, and machine parts via express global shipping.

Ready To Implement Your Goodyear Smart Factory?

From ribbing algorithms to the final high-luster polish, Tenghong delivers the engineering precision required for the world’s finest Goodyear welted shoes.
