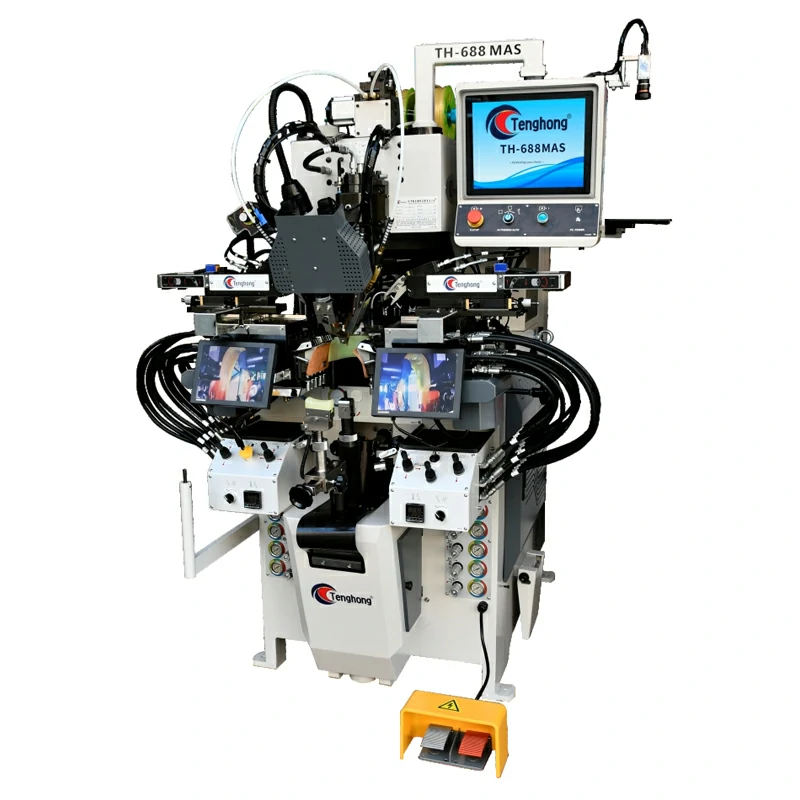

Computer Memory Visual Locus•Servo Control TH-688MAS

FEATURES:

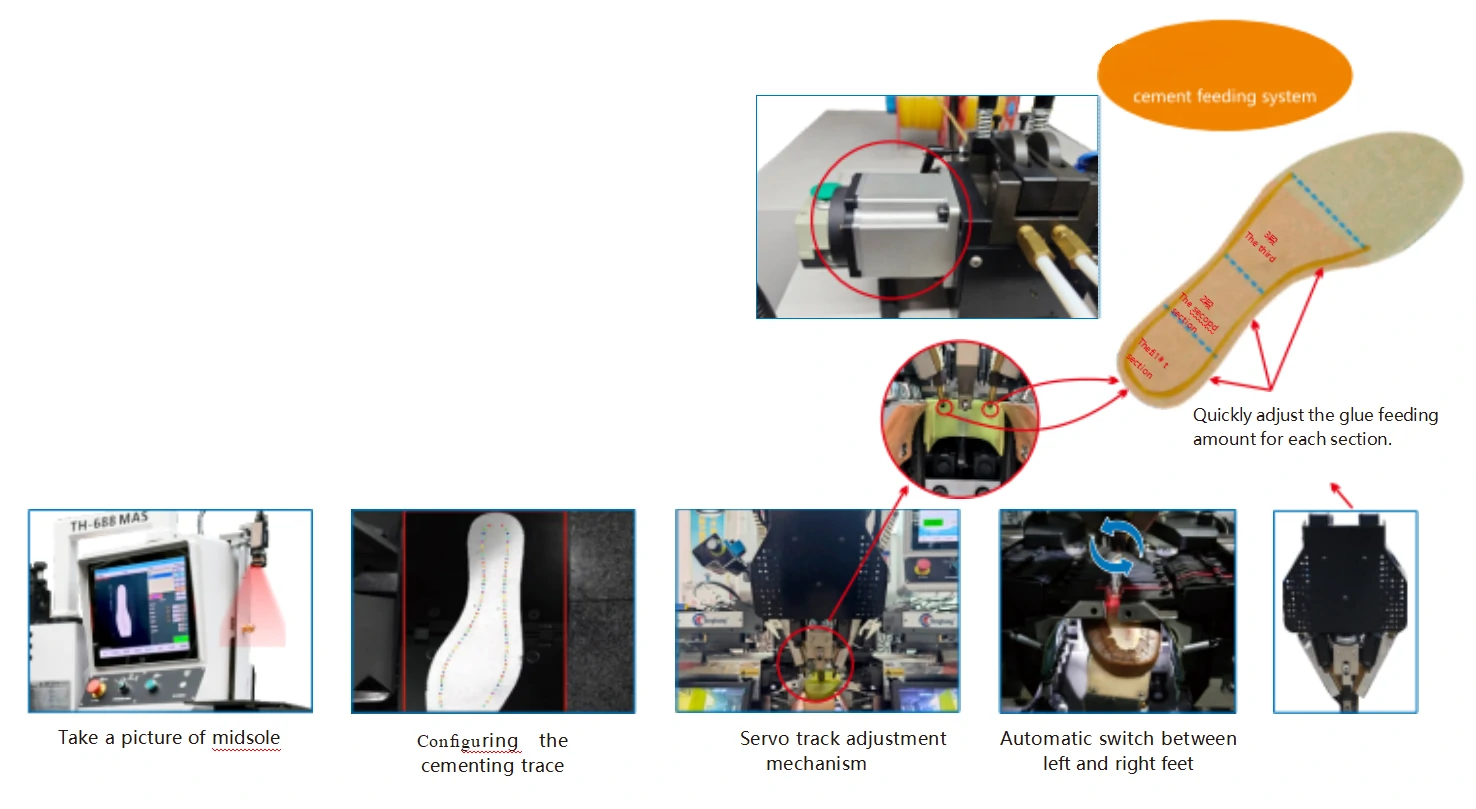

•  This  machine  is  using  the  most  advanced visual  identification technology to format  the  cementing  locus  and  four-axis  servo-controlled  cementing  system  to control two cement  nozzles ,  by taking  picture of the  insole and and can quickly convert into a full set of sizes .
• Program  ability  and  Parameter  Storage:  (1)  Programmable  servo-controlled cementing path; (2) The angle of side-pressing seat is controlled by motor-driven mechanism according to different height of waist , the angle of side-pressing seat can  be  memorized with automatic  left/ right swapping function to adjust the  best lasting position;(3) Electric adjustment position memory of the front and rear paws , including the left and right Automatic switching of different clamping points on the inner  and  outer waist  of the foot ,  the function  of  pulling  the  claws forward  and inward , and then upward and forward (4) This machine can store at least 3000 sets of shoe shape memories .
• The  glue  wiping  stroke  is  adjusted  by  intuitive  laser  light  irradiation  point adjustment . You only need to adjust the laser light point position to quickly adjust the required glue length . When the light point position is reached , the knot length can be set .
• Pincers have both left/ right-pulling , up-pulling and forward-pulling functions . The position  of  up-pulling  of  inner  and  outer  sides  can   be  set  differently,  with programmable automatic left/ right shoe swapping function .
•  Pincers  mechanism  equipped  automatically  inward  pulling with  synchronized adjustment for left/ right pincer’s pulling pressure and individually inch up-pulling movement with automatically detection of inner waist or outer waist .
• This machine equipped unique designed cementing nozzles with program able servo-controlled visual setting cementing path to simplify the lasting procedure and reduce labor in gluing the vamp.
